Device Details Dashboard

Device details are reported regularly to the BlueFletch Portal by all devices that have the BlueFletch Support Application installed. This information can be conveniently viewed in one place, the device's detail dashboard. There are several ways to access the dashboard:

1. By accessing this link on the Playbook Device List page and choosing the specific Device ID button.

2. By accessing this link on the Android EMM Devices page and choosing the specific Device ID button.

3. Directly by URL: https://ems.bluefletch.com/support/device/[SERIAL NUMBER].

4. By linking the URL to a dashboard device list card, such as the public data table card "Device Check In/Check Out" that BlueFletch provides. (What if the client doesn't have this "Device Check In/Check Out" card?).

A device's dashboard includes the following cards, with details populated as relevant. For example, if a device is not enrolled in an enterprise mobility management policy, then EMM Details will be empty.

Device Information

General information about the device.

• Device ID: Device's serial number

• Model: Device's manufacturer name and model number

• Android Version & Build Number: Android operating system version number followed by the specific Android build number, which is sometimes OEM-specific

• Site: Current site name associated with the device

• State: Current device state (e.g. Idle, Cradled, etc.)

• Last User: Username of the last logged-in account

• Last Reported: Date and time that the Support Agent on the device last sent up an event

EMM Details

Information specific to the device's status in the organization's enterprise mobility management (EMM). Only reports if device is enrolled in the EMM.

The EMM Console chip in the header indicates that this device can be found in the EMM Console tab's Devices. A green Compliant or red Not Compliant chip indicates whether or not the device has been assigned to an EMM policy.

• Management Mode: Android Enterprise management mode (e.g "DEVICE_OWNER" means device has a device policy controlled installed by the enterprise managing the device)

• State: State of the device in its policy (i.e. ACTIVE or INACTIVE)

• Policy: EMM policy identifier

• Enrollment Time: Date and time that the device was initially enrolled in EMM policy

• Last Policy Sync Time: Date and time device was most recently synced to EMM policy

• Total Ram: Memory on device

• Total Internal Storage: Disk storage on device

• Android Version: Android operating system version on device

• Android Status: Status of operating system on device (up-to-date or behind on patches/updates)

Playbook Details

Information specific to the device's status within a playbook. Only reports if the device has been deployed with the BlueFletch Playbook Agent.

The Playbook MDM chip in the header indicates that this device can be found in the Playbook MDM tab's Devices. A green Compliant or red Not Compliant chip indicates whether or not all plays in the playbook ran successfully on this device.

• Deployment group name: Name of the deployment group that enrolled the device in a playbook

• Playbook name: Name of the playbook that was deployed to the device

• Created: Date and time that the playbook was created

• First Reported Time: Date and time that the device first reported to Playbook Agent

• Last Sync Time: Date and time that the Playbook Agent on the device last synced with its deployment group/playbook on the Portal

• Agent Version: Version number of BlueFletch Playbook Agent installed on device

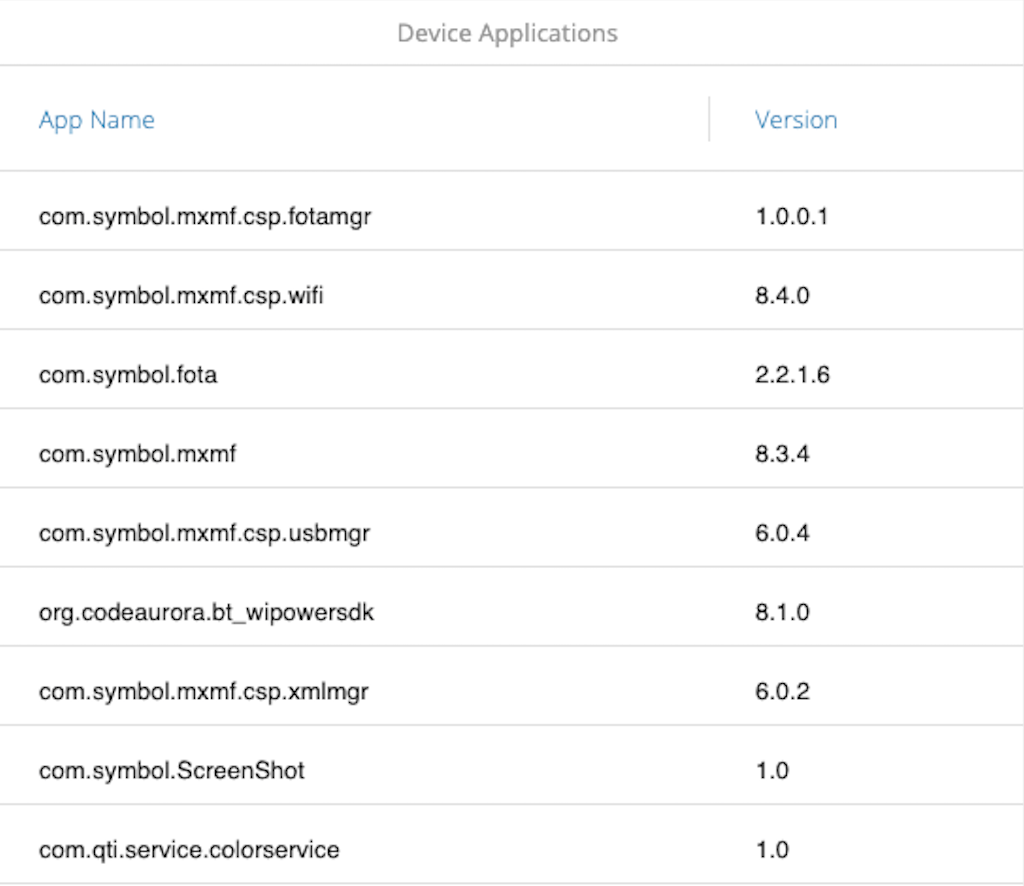

Installed Apps

List of the application packages installed on the device. Details are displayed in the following two columns, and the user can hover over the application for all details in a tooltip.

• App Name: The application's "friendly" name is displayed if available, otherwise the package name is displayed

• Version: The application version number installed on the device

Plays on Device

List of the plays belonging to the playbook deployed to the device. Displayed in two columns.

• Play: Name of play as seen in the playbook

• Status: State of that play on the device; "Compliant" or an error, such as "Failed while installing application"

Launcher Information

Identifying information for the current versions of the Launcher application and of the launcher configuration on the device.

Launcher Version: Version number of com.bluefletch.launcher package on device Configuration Version: Value of configVersion field of the launcher.json configuration file on the device

Battery

Information on the device's battery state.

• Status: Power session state of the battery (e.g. "Full", "Charging", "Discharging")

• Charge: Percentage charged

• Temperature: Battery temperature in degrees Fahrenheit

• Health: Battery condition (e.g. "Good")

• Max Capacity: Percentage that is considered a full charge (e.g. "100%"); this field requires Support Application version 5.3.18+ and will remain empty until the device has been fully charged at least once since Support Agent has been tracking it

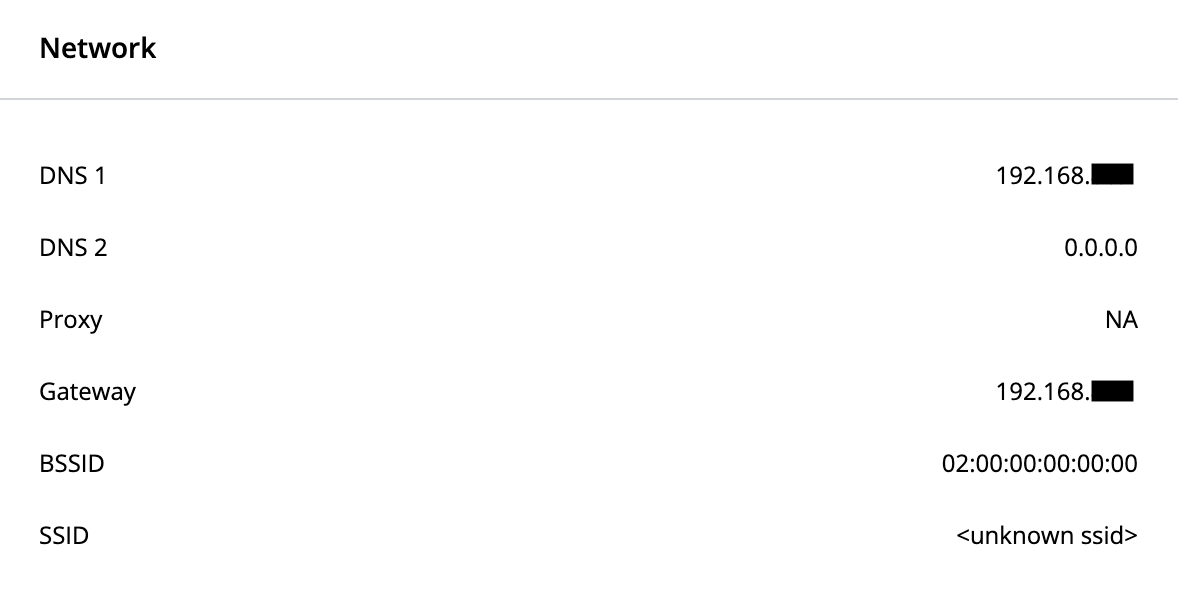

Network

Information on the device's network connection.

• DNS 1: IP address of the network's primary DNS server

• DNS 2: IP address of the network's secondary DNS server

• Proxy: IP address of proxy server if relevant; otherwise, "NA"

• Gateway: IP address of network's default gateway/router

• BSSID: BSSID of the connected access point

• SSID: SSID of the connection
